VH55C-E : 54.6" VW Display, Full HD
VH55C-E : 54.6" VW Display, Full HD - Image 2
VH55C-E : 54.6" VW Display, Full HD - Image 3
VH55C-E : 54.6" VW Display, Full HD - Image 4
VH55C-E : 54.6" VW Display, Full HD - Image 5
VH55C-E : 54.6" VW Display, Full HD - Image 6

VH55C-E : 54.6″ VW Display, Full HD

Key Features
55″ VHC-E Series 700nit FHD Video Wall for Business

• Samsung’s VHC-E series with extreme-narrow 1.74mm bezels and 700 nit brightness for high impact visuals.
• Picture Enhancer mode improves color saturation and contrast.
• Wide viewing angles and non-glare panels make content easily accessible.
• Comprehensive calibration and streamlined functionality for simplified operation.

$3,429.83

Product Details

Always-on, space-saving solution with extreme narrow bezels

Samsung’s VHC-E series provides an immersive, dependable 24/7 viewing experience. The display’s slim depth and 700 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls and lobbies to meeting rooms, control rooms, and more.

Industry standard certified

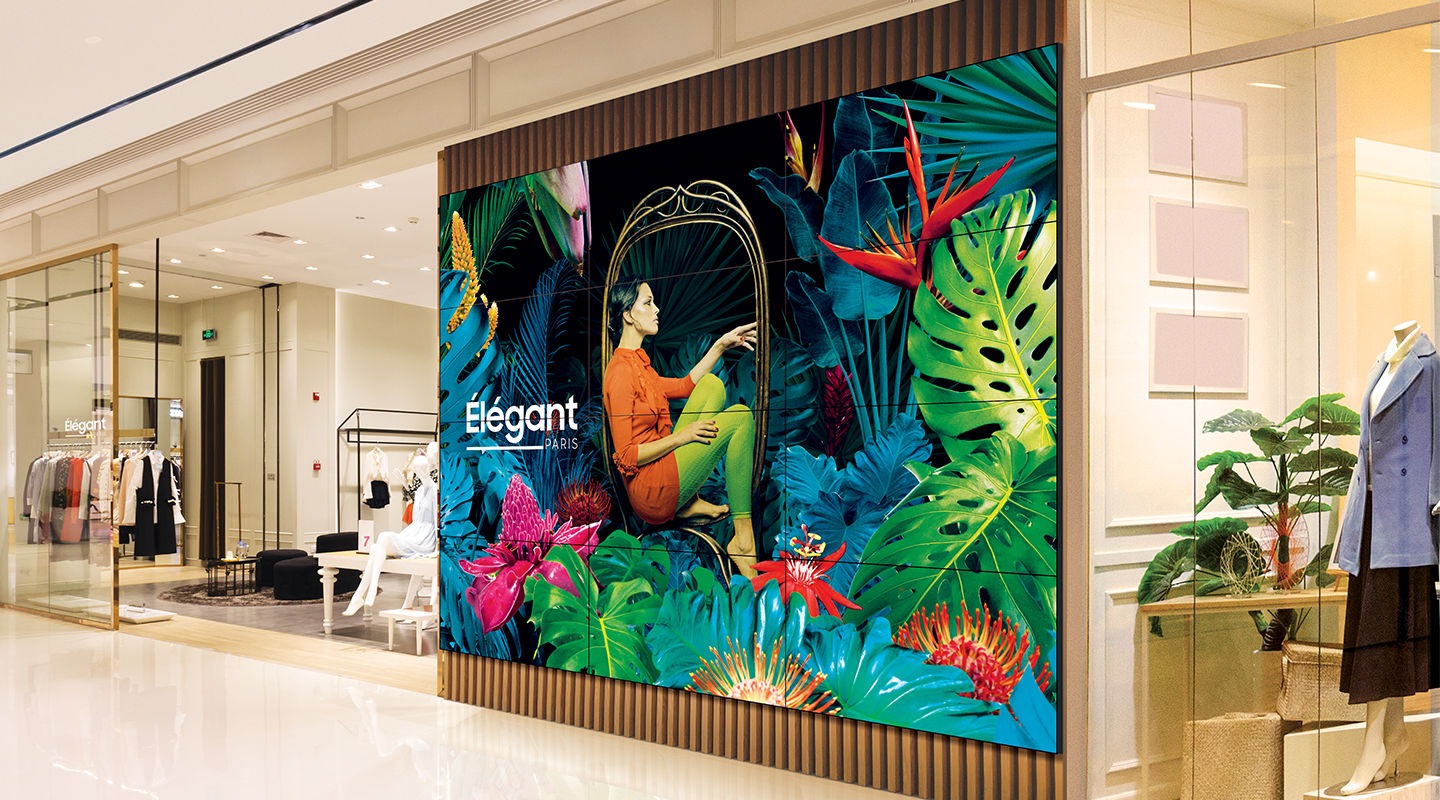

Transform any space with high impact visuals

The slender design and 70.4mm cabinet depth provides flexible installation options, opening the door to endless possibilities. The extreme-narrow 1.74mm bezel-to-bezel width creates a seamless picture for a captivating visual experience.*

* Exact depth varies by display size. B-to-B means “Panel Bezel to Panel Bezel”. “Active area to Active area” may vary depending on the model and actual installation environment.

Transform any space with high impact visuals

Vibrant images in any light

Non-glare panels ensure an even distribution of light across the screen, maintaining the accuracy and vibrancy of the content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night — regardless of ambient light.

Vibrant images in any light

View content from any angle

Wide viewing angles ensure that the content is easily visible even if viewers aren’t standing directly in front of the display. Regardless of the screen’s location, the vivid colors and details will be clearly seen by audiences.

View content from any angle

Image enhancement technology

Samsung’s powerful image enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, making details easier to see.

Image enhancement technology

Comprehensive calibration to fit your needs

Multi-step factory tuning provides uniform brightness and color. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for displays up to 3×3 using a mobile camera.

Comprehensive calibration to fit your needs

Advanced presentation, simplified operation

Utilizing daisy chain design through DisplayPort 1.2 or HDMI ports enables the display to present UHD content on multiple screens without an external graphics card. Samsung’s UHD Signage Player Box streamlines functionality by combining the media player and content management software.

Advanced presentation, simplified operation

Industry standard certified

The VHC-E series is EMC class B compliant*, meeting strict standards of electromagnetic wave emission, while IP5x certification** protects the display against dust and other conditions. The display packaging also passed a rigorous 2-step, ISTA certified*** test to minimize possible damage during delivery.

* EMC: Electromagnetic compatibility
** IP5x validation ensures satisfactory operation even with a certain level of dust inside the product. However, product operation is not guaranteed when exposed to particular types of dust, such as metal dust
*** ISTA: International Safe Transit Association

Industry standard certified
Hide All Specs
  • Display
    H-Scanning Frequency
    62.7kHz ~ 72.3kHz
    Maximum Pixel Frequency
    82MHz
    V-Scanning Frequency
    57Hz ~ 63Hz
    Contrast Ratio (Dynamic)
    45,000:1
    Orientation
    Landscape / Portrait
  • Connectivity
    External Control
    RS232C(in/out), RJ45
    RGB Input
    DVI-D, Display Port 1.2
    VIDEO Input
    HDMI 2.0 (2)
    HDCP Input
    HDCP 2.2
    AUDIO Input
    Stereo mini Jack
    USB Input
    Only F/W upgrade
    RGB Output
    DP1.2(Loop-out)
    AUDIO Output
    Stereo mini Jack
    External Sensor
    Detachable type(IR)
  • Power
    Power Supply
    AC 100 – 240 V, 50/60 Hz
    Power Type
    Internal
    Sleep Mode
    less than 0.5W
    Off Mode
    less than 0.5W
    Power Consumption Max[W/h]
    242W
    Power Consumption Typical[W/h]
    145
    Power Consumption BTU(Max)
    825
  • Certification and Compliance
    EMC
    Class A
    Safety
    60950-1
    IP Rating
    IP5X
  • Features
    Key
    Ultra Narrow Bezel
    Special
    “ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 25%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15×15(OSD)), Video Wall Daisy Chain(10×10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(168hrs Clock Keeping) IP5X tested, EMC Class A, Center IR”
  • Mechanical Specs
    VESA Mount
    600 * 400 (mm)
    Bezel Width (mm)
    2.3mm(U/L), 1.2mm(R/B)
    Media Player Option Type
    Signage player box
    Set Dimension (mm)
    1213.5 x 684.3 x 73.1
    Package Dimension (mm)
    1398 x 844 x 257
    Set Weight (kg)
    21.2
    Package Weight (kg)
    28.8
  • Accessories
    Included in Box
    “Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries, External IR”
    Optional Wall Mount Kit
    WMN-55VD
  • Panel
    Pixel Pitch (mm)
    0.63mm(H) * 0.63mm(V)
    Response Time(G-to-G)
    8ms
    Diagonal Size Class
    55″
    Diagonal Size Measured
    54.6″ / 138.7cm
    Power Type
    IPS
    Resolution
    1920*1080
    Active Display Area(mm)
    1209.6 * 680.4mm
    Brightness
    Max 500 cd/m2
    Contrast Ratio (in Darkroom)
    1,200:1
    Viewing Angle (H/V)
    178/178
    Display Colors
    8 bit – 16.7M
    Color Gamut
    72%
    Operation Hour
    24/7
    Haze
    25%
  • Operation
    Operating Temperature
    0℃~ 40℃
    Humidity
    10~80%
